Small drilling machine TPY-30 core sample drilling rig

Name: Small drilling machine TPY30 core sample drilling rig
Brand: Gold
Price: 1 USD

Place of Origin : China

Brand Name : Gold

Certification : CE ISO9001:2008

Model Number : tpy-30

MOQ : 1 SET

Price : 1

Packaging Details : Plastic sheeting for drilling rig

Delivery Time : 15 days after receiving deposit

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Month

Warranty : 1 year

Contact Now

Vivienne

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Email: gold04@hy-industry.com
Mobile / Whatsapp:+86-15123029803

Fax:+86-23-62940030 Skype:viviennecq

Light and Small drilling machine

Easy to move and operate

Application&Features

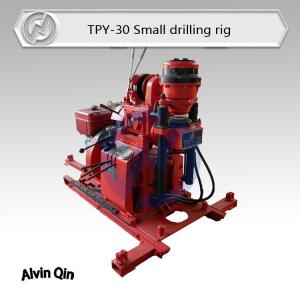

Small drilling machine TPY-30 core sample drilling rig

TPY-30 Small drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.

Light, good detachability, easy moving, suitable for mountainous area.
Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
Perfect performances, simple and compact design, easy operation.
Largely powered, reasonable speed range, suitable for various drilling methods.

Equipped with light and detachable aluminium alloy derrick. Small drilling machine TPY-30 core sample drilling rig

Specification

Small drilling machine TPY-30 core sample drilling rig

Drilling capacity	Hole dia	Φ75mm,Φ110mm
	Depth	25m,30m
Rotation table speeds	110;234;332
Rotation table output torque	0.326
Max pull force	20
Feed stroke	350
Retraction stroke	220
Single rope max lift force	3.43
Hoisting speeds (the second layer)	0.58;1.15;1.78
Oil pump	CBW-F203-AFPL
Drill body Weight (excluding power unit) (kg)	240
Overal dimensions(LWH)	1270624890
Power unit	Diesel engine	Model	R185A
		Power	6.25
		Speed	2400
	Electric motor	Model	Y132S1-2
		Power	5.5
		Speed	2900

Hot Sale Models

Our Services

Ⅰ.Warranty

The main machine has 12-month warranty, excluding the wearing parts, we offer these parts with the lowest price for our customer.

Ⅱ.Installation and Commissioning

A.We provide our customers foundation and layout drawings after payment.

B. If needed, we will send technical engineers to the Buyer’s site for supervision of erection and Commissioning. Expenses abroad should be paid by the buyer.

Ⅲ. Inspection:

A. Customer inspection in factory;

B. Supplier offer pictures for inspection;

C. The third party inspection appointed by Customers.
